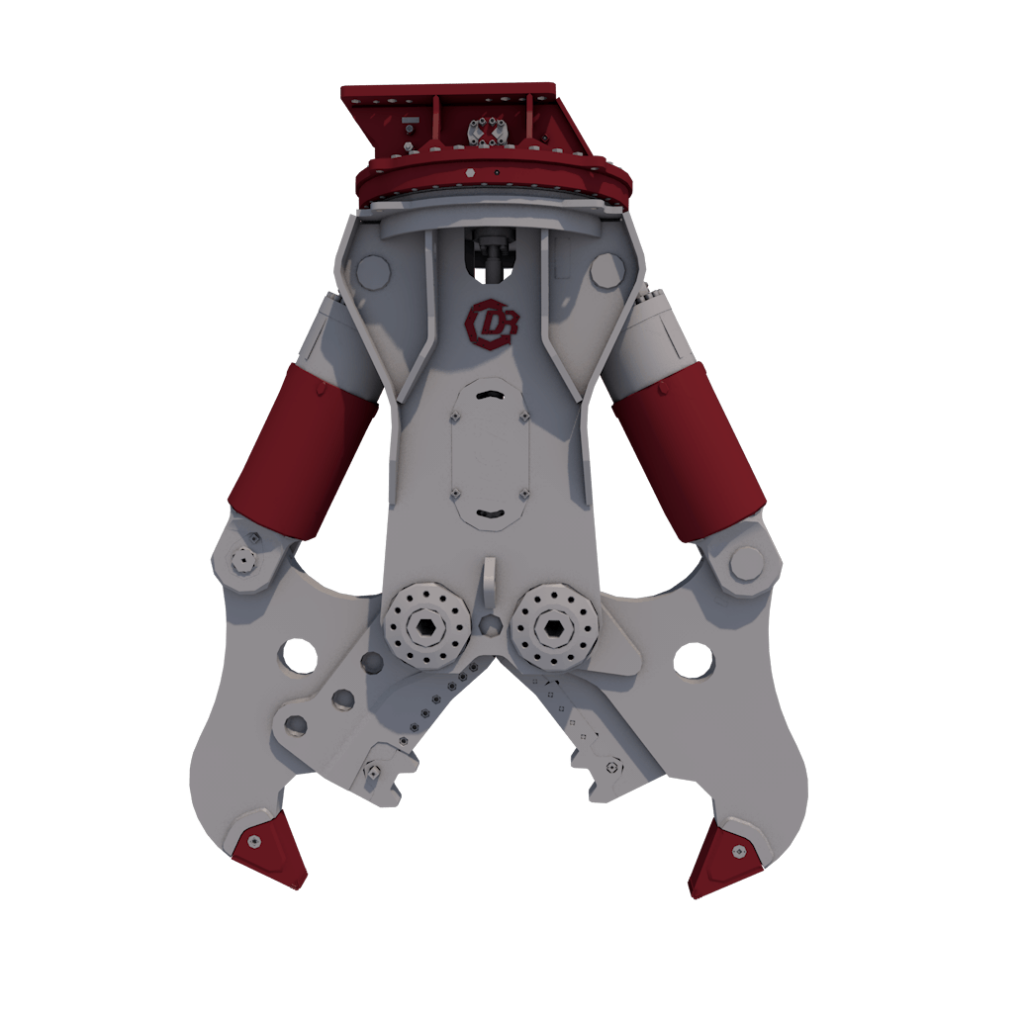

2-cylinder
concrete crushers
without
compromises
Far out the best in it’s weight class, the DCC-line is designed for this application without any compromises. Equipped with 2 pins, different type of jaws, and the powerfull DemaPower 2.0 cylinders. Because of the DemaPower 2.0 cylinder technique the DCC concrete crusher has the performance equivalent to crushers one or two sizes larger.
3 versions
There are three versions in the DCC product line: DCC-A, and the DCC-C and DCC-D models. The DCC-A feature exchangeable cutting blades, while the DCC-C and DCC-D are fully equipped with wear parts. The DCC concrete crusher works perfectly with the latest model excavators and specialized ‘High Reach Demolition Machines’.
best in
weight class
Far out the best in it’s weight class, the DCC-line is designed for this application without any compromises. Equipped with 2 pins, different type of jaws, and the powerfull DemaPower 2.0 cylinders. Because of the DemaPower 2.0 cylinder technique the DCC concrete crusher has the performance equivalent to crushers one or two sizes larger.
25% more cylinder power
will be 100% transformed to
25% more closing force
More power (25% more surface area)
Extremely fast cycle times
Pressure chambers
Key features & benefits
Very strong & stable housing design
Made of high strength steel
DemaFilter
DemaFilter-System in rotation circuit
4 Cylinder chambers
Two way oil regeneration
(open & close) and high cylinder forces
More cutting blades
2 cutting blades for DCC-25 – DCC-40
4 cutting blades for DCC- 50 – DDC-75
New Rotator head design
New swivel with single & double
connections, HD-slewing ring (double roles for all types)
New Hydraulic valve system
With high flow capacity
Wedge-style jaw
For the best penetration performances
Jaw is made of high strength & wear resistance steel
Excangeable piercing tip
DCC-65-C and DCC-75-C with excangeable piercing tip and long cutting knives (4x)
DCC-A
Standard DCC
DCC-C
With exchangeable tips, shrouds and long cutting blades
DCC-D
With exchangeable wear parts and standard cutting blades
| Type | Machine gewicht* | Gewicht** | Sluitkracht | Bekopening | Breedte bekken | Bekdiepte | Hoogte | Lengte knipmessen | Flow open/dicht |
|---|---|---|---|---|---|---|---|---|---|
| DCC-25-A | 18 - 25 t | 2000 kg | 105 ton | 1000 mm | 60 mm | 865 mm | 2195 mm | 200 mm | 150 - 250 l/min |
| DCC-30-A | 20 - 35 t | 2425 kg | 120 ton | 1150 mm | 70 mm | 935 mm | 2390 mm | 250 mm | 200 - 300 l/min |
| DCC-40-A | 25 - 45 t | 3250 kg | 135 ton | 1360 mm | 80 mm | 1335 mm | 2545 mm | 300 mm | 250 - 350 l/min |
| DCC-50-A | 35 - 55 t | 4200 kg | 155 ton | 1500 mm | 90 mm | 1135 mm | 2845 mm | 300 mm | 300 - 500 l/min |
| DCC-65-A | 50 - 70 t | 5300 kg | 180 ton | 1600 mm | 100 mm | 1235 mm | 2995 mm | 300 mm | 400 - 600 l/min |
| DCC-75-A | 60 - 80 t | 6300 kg | 200 ton | 1750 mm | 100 mm | 1350 mm | 3225 mm | 400 mm | 500 - 700 l/min |
| DCC-25-C | 18 - 25 t | 2100 kg | 105 ton | 1000 mm | 825 mm | 2195 mm | 520 mm | 150 - 250 l/min | |
| DCC-30-C | 20 - 35 t | 2465 kg | 120 ton | 1150 mm | 900 mm | 2390 mm | 520 mm | 200 - 300 l/min | |
| DCC-40-C | 25 - 45 t | 3300 kg | 135 ton | 1360 mm | 1000 mm | 2545 mm | 570 mm | 250 - 350 l/min | |
| DCC-50-C | 35 - 55 t | 4320 kg | 155 ton | 1500 mm | 1100 mm | 2845 mm | 650 mm | 300 - 500 l/min | |
| DCC-65-C | 50 - 70 t | 5440 kg | 180 ton | 1600 mm | 1200 mm | 2995 mm | 680 mm | 400 - 600 l/min | |
| DCC-75-C | 60 - 80 t | 6300 kg | 200 ton | 1700 mm | 1250 mm | 3225 mm | 700 mm | 500 - 700 l/min | |
| DCC-25-D | 18 - 25 t | 2000 kg | 105 ton | 980 mm | 825 mm | 2195 mm | 200 mm | 150 - 250 l/min | |
| DCC-30-D | 20 - 35 t | 2425 kg | 120 ton | 1125 mm | 900 mm | 2390 mm | 250 mm | 200 - 300 l/min | |
| DCC-40-D | 25 - 45 t | 3250 kg | 135 ton | 1355 mm | 1000 mm | 2545 mm | 300 mm | 250 - 350 l/min | |
| DCC-50-D | 35 - 55 t | 4200 kg | 155 ton | 1490 mm | 1100 mm | 2845 mm | 300 mm | 300 - 500 l/min | |
| DCC-65-D | 50 - 70 t | 5300 kg | 180 ton | 1565 mm | 1200 mm | 2995 mm | 300 mm | 400 - 600 l/min | |
| DCC-75-D | 60 - 80 t | 6300 kg | 200 ton | 1710 mm | 1300 mm | 3225 mm | 400 mm | 500 - 700 l/min |
Download our free
DCC brochure
Want to know more about our 2-cylinder concrete crushers?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition recycling scrap handling and construction attachments are included in Demarec’s product range?
Demarec has separate product lines with the PremiumLine and ProLine for Demolition and Recycling, Scrap and Recycling, and Construction. Key tools include demolition and sorting grabs, pulverizers, multi quick processors, two cylinder concrete crushers, hydraulic hammers, multi shears, drum cutters, scrap shears, rail cutters, polyp grabs, rotatable pulverizers, tilt rotators and more.
How does the patented DemaPower System boost the power and cycle speed of Demarec tools?
The four chamber DemaPower cylinder delivers about twenty five percent more closing force and cycles faster because two chambers work on the in stroke and two on the out stroke. A double acting speed valve keeps oil moving both ways, so the jaw opens and closes in roughly five seconds while staying within normal excavator pressure.
Where can I obtain spare parts maintenance, repairs for my Demarec attachment or who do I call for urgent technical assistance if my Demarec tool develops a fault on site after purchase?
Demarec runs an in house service department and After Sales portal. For help you can phone +31 485 442 300 option 2 for parts or option 3 for service, or write to parts@demarec.com and service@demarec.com. Local dealers worldwide can also supply parts and support.
I would like to represent Demarec what steps should I follow to become an authorised dealer?
Fill out the short enquiry form on the Become our dealer page. Demarec will review the details and respond directly.
Does Demarec offer training facilities to dealers?
Yes we have our inhouse training center for service and sales.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my carrier excavator or material handler?
Every product page and brochure includes a technical specification table that lists carrier weight windows, tool weight, oil flow and pressure. Match your machine to those ranges or ask Demarec service for confirmation. Example: DRG selector grabs cover carriers from ten to eighty tons with detailed specs-per-model.
