multi-shears
The DMS is a truly
multifunctional shear
The DEMAREC DMS Multi-shear is the ideal flexible shear for use with midi excavators. The DMS is a truly multifunctional shear thanks to the mechanical change system and the wide range of available jaws. There are jaws available for cutting through reinforced concrete (DMS-05-C), scrap (DMS-05-S), and for cutting cables (DMS-05-V). The DMS-05 can be used for both primary and secondary demolition work. All jaws are fitted with replaceable wearing parts where possible. Jaws can be quickly and safely changed in just a few minutes.
The DMS is a truly multifunctional shear
thanks to
the mechanical change system and the wide range of available jaws
Key features & benefits
Optimal weight / power ratio
Upside-down cylinder
to protect the rod completely
Speed valve
for fast cycle times
Multi-Link system
for easy and fast exchange of the jaw
Compact 15 ton hydraulic rotator
360° rotatable
Replaceable wear parts
in the jaws
Perfect jaw geometry
for optimal performance

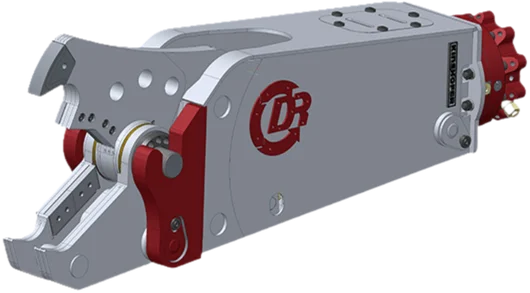

C-jaw
Combi-jaw
Jaw-set for primary demolition.
Jaw-set made for demolition of structures madeof reinforced concrete with a high percentage offerrous materials and cutting steel structures.
A C-jaw gives the best combination for demolition of concrete and steel.
The ripper tooth brakes the concrete and the long cutting edges are perfect to cut steel.

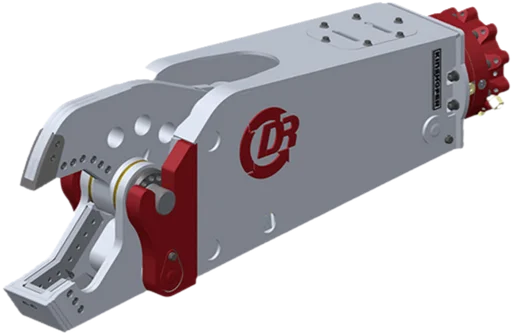

S-jaw
Steel-jaw
Jaw-set for primary and secondary demolition.
Made for demolition of steel structures.
Processing all kinds of scrap to reduce sizes.
Exchangeable piercing tip for optimal penetration.
Cutting edges made of tool-steel for a long life time and good cutting performance.

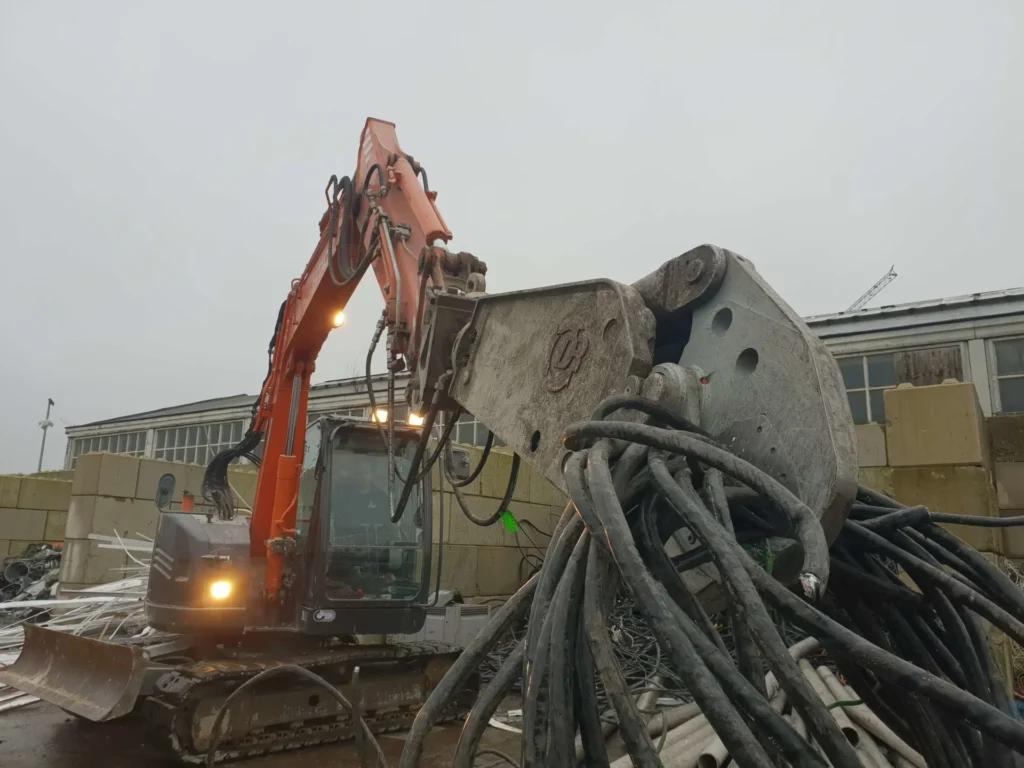

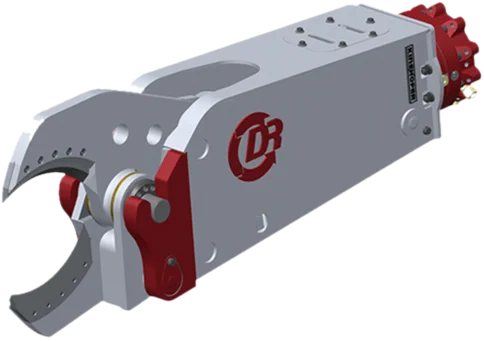

V-jaw
Cable-jaw
Jaw set for primay and seconday demolition
Made to cut mainly all kind of electricity wire cables
Processing cables to reduce sizes
Safe, easy and fast cutting of wire cables on site or on a recycling plant
Wire cables are sized for transport and/or recycling
Different sizes of electricity cables can be cut depending of the strengthness
Cutting blades from tool-steel for a long lifetime and good cutting performance
| Type | Carrier weight (Stick)* | Carrier weight (Boom)* | Carrier weight (Skid steer)* | ||
|---|---|---|---|---|---|
| DMS-05-Y | 7 – 9 ton | 5 – 7 ton | 3 – 5 ton | ||
| *Depending on lifting capacity of carrier | |||||
| Type | Weight* | Closing force | Length | Jaw opening | Jaw depth |
| DMS-05-C | 540 kg | 34 / 48 ton | 1665 mm | 400 mm | 360mm |
| DMS-05-S | 510 kg | 156 ton | 1665 mm | 320 mm | 360 mm |
| DMS-05-V | 500 kg | 102 ton | 1725 mm | 270 mm | 355 mm |
Download our free
DMS brochure
Want to know more about our Multi-shears?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition recycling scrap handling and construction attachments are included in Demarec’s product range?
Demarec has separate product lines with the PremiumLine and ProLine for Demolition and Recycling, Scrap and Recycling, and Construction. Key tools include demolition and sorting grabs, pulverizers, multi quick processors, two cylinder concrete crushers, hydraulic hammers, multi shears, drum cutters, scrap shears, rail cutters, polyp grabs, rotatable pulverizers, tilt rotators and more.
How does the patented DemaPower System boost the power and cycle speed of Demarec tools?
The four chamber DemaPower cylinder delivers about twenty five percent more closing force and cycles faster because two chambers work on the in stroke and two on the out stroke. A double acting speed valve keeps oil moving both ways, so the jaw opens and closes in roughly five seconds while staying within normal excavator pressure.
Where can I obtain spare parts maintenance, repairs for my Demarec attachment or who do I call for urgent technical assistance if my Demarec tool develops a fault on site after purchase?
Demarec runs an in house service department and After Sales portal. For help you can phone +31 485 442 300 option 2 for parts or option 3 for service, or write to parts@demarec.com and service@demarec.com. Local dealers worldwide can also supply parts and support.
I would like to represent Demarec what steps should I follow to become an authorised dealer?
Fill out the short enquiry form on the Become our dealer page. Demarec will review the details and respond directly.
Does Demarec offer training facilities to dealers?
Yes we have our inhouse training center for service and sales.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my carrier excavator or material handler?
Every product page and brochure includes a technical specification table that lists carrier weight windows, tool weight, oil flow and pressure. Match your machine to those ranges or ask Demarec service for confirmation. Example: DRG selector grabs cover carriers from ten to eighty tons with detailed specs-per-model.
