Rail
Cutter
Controlled and
safe demolition

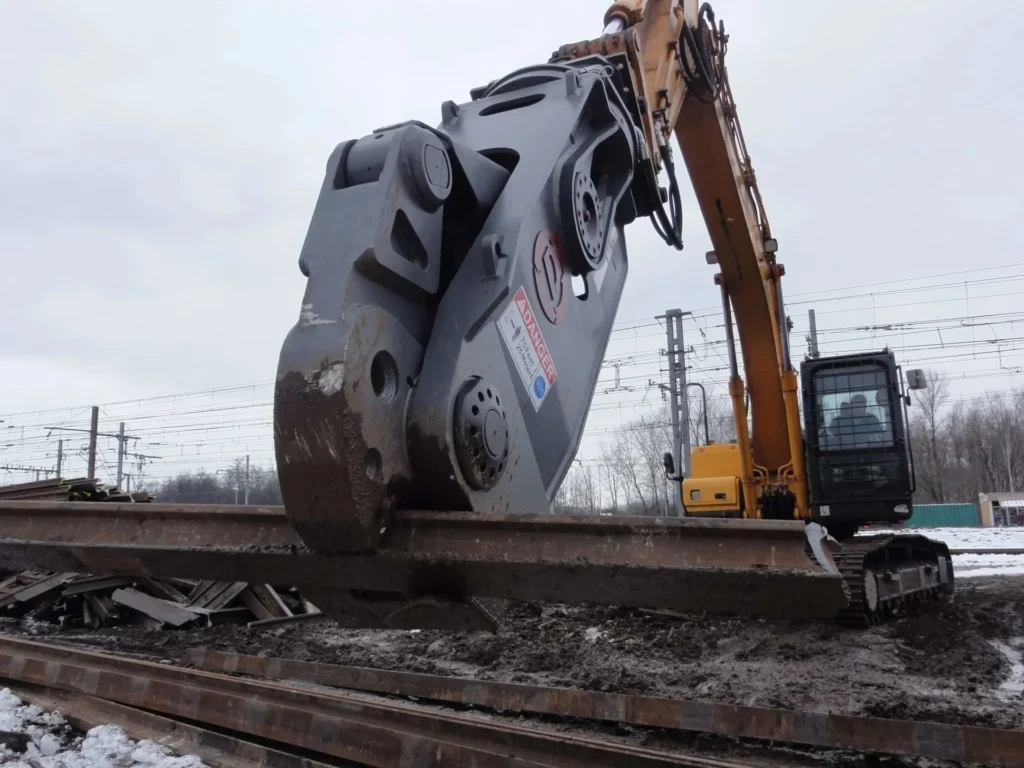

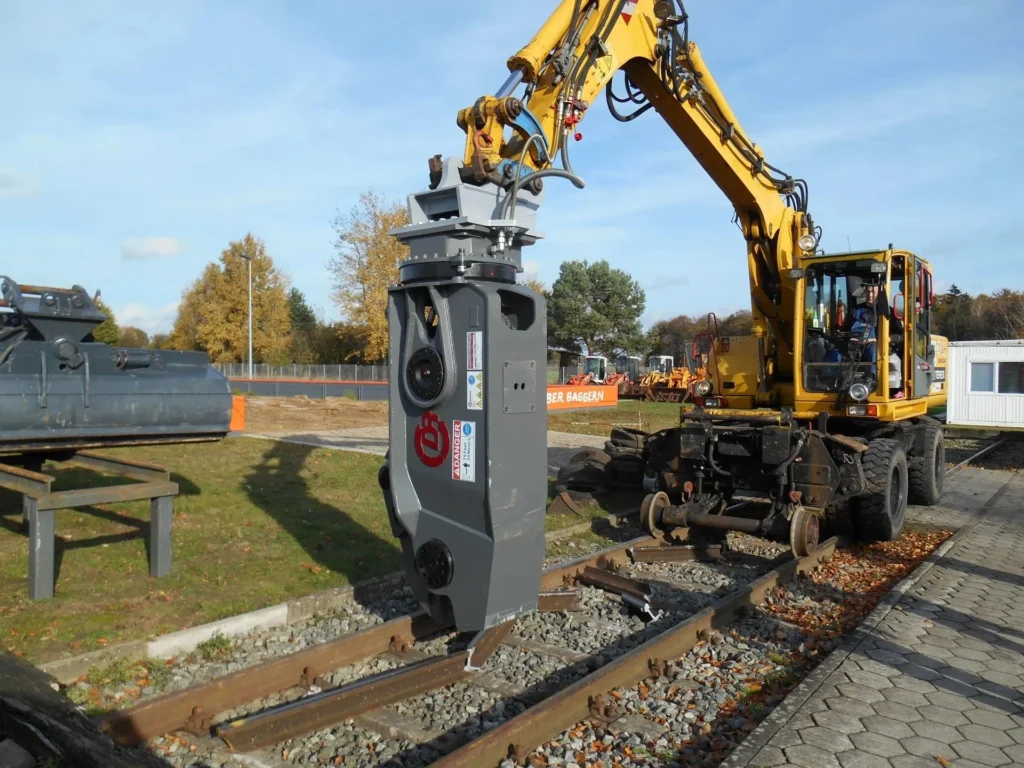

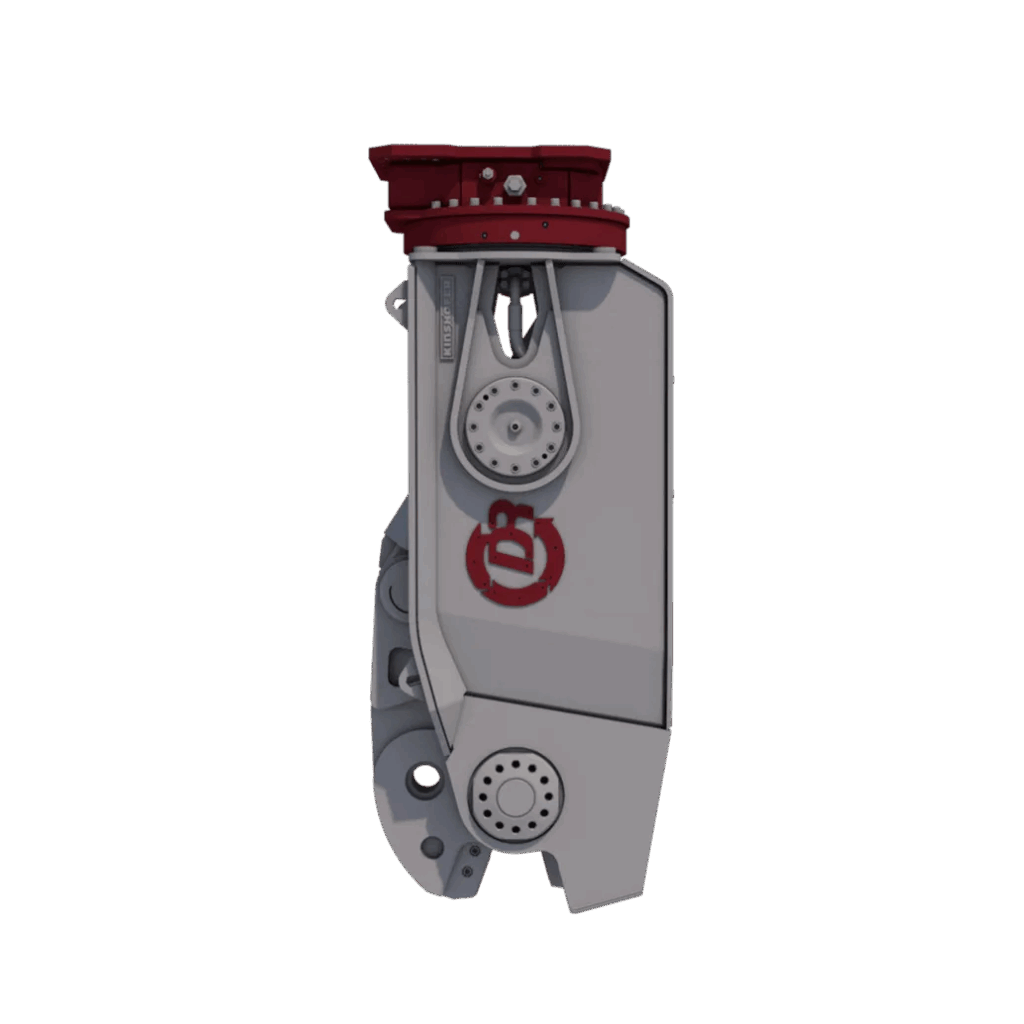

The mobile Demarec Rail Cutter RC-30 is a special development for controlled and safe demolition of rail systems and for scrap preparation of railway lines. All current Vignol rails (flat bottom rails) with a standard quality up to 900 N/ mm2 and a profile size „S7“ to „UIC 60“ can be cut with the railcutter. Vignol rails in special qualities exceeding 900 N/mm2 or with head hardening are excluded.
cut safely
and efficiently
The wear of the cutters highly depends on the quality of the rails. Cutting rails with a ordinary scrap shear is a risky task because of the flying scrap. With the Demarec Railcutter it is possible to cut safely and efficiently. The RC-30 is fully rotatable but there is also a static Railcutter available.
20% more
performance
The jaws are a perfect match for all tough conditions during demolition and recycling. In all cases, the emphasis is on efficiency and durability. Furthermore, and that is perhaps even more important, a Demarec Rail cutter has, compared to every other competing brand, an additional performance that can amount to up to 20%. In other words, more profits thanks to more power and more speed.
20% more power
Extremely fast cycle times
4-5s
Extremely fast cycle times
Double
Pressure chambers
Key features & benefits
Compact shear body
Made of high-strength fine grained steel
Fast access to hoses and hydraulics
Heavy duty rotation
360° continuous rotation
Oversized slewing ring
Heavy duty motors
Filters in rotation circuit
DemaFilter-System
in rotation circuit
Shear arm
Very robust
Solid slim design
Out of Hituf
Heavy duty bearing in pivot point
Extremly robust
Oversized main pin
Optimal mouth design
More cutting force due kinematic of the moving jaw
Cutting blades can be turned
Blades can be loosened from the outside
Automatically protects the cylinders
Demarec operates as the only manufacturer in the market place with a valve that automatically protects the cylinders against too much pressure at the rod side of the cylinder. This could arise when the return-oil is blocked by, e.g., a closed valve or a broken quick coupler
| Type | Weight* | Carrier weight** | Jaw opening | Jaw depth | Length |
|---|---|---|---|---|---|
| RC-30 | 2650 kg | 20 – 35 ton | 224 mm | 190 mm | 2234 mm |
| RC-30-S | 2300 kg | 20 – 35 ton | 224 mm | 190 mm | 2040 mm |
| *Excl adapter | |||||
| **Depending of lifting capacity of carrier |
Download our free
RC brochure
Want to know more about our Rail cutters?
Download the brochure for more info by filling out the below form.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition recycling scrap handling and construction attachments are included in Demarec’s product range?
Demarec has separate product lines with the PremiumLine and ProLine for Demolition and Recycling, Scrap and Recycling, and Construction. Key tools include demolition and sorting grabs, pulverizers, multi quick processors, two cylinder concrete crushers, hydraulic hammers, multi shears, drum cutters, scrap shears, rail cutters, polyp grabs, rotatable pulverizers, tilt rotators and more.
How does the patented DemaPower System boost the power and cycle speed of Demarec tools?
The four chamber DemaPower cylinder delivers about twenty five percent more closing force and cycles faster because two chambers work on the in stroke and two on the out stroke. A double acting speed valve keeps oil moving both ways, so the jaw opens and closes in roughly five seconds while staying within normal excavator pressure.
Where can I obtain spare parts maintenance, repairs for my Demarec attachment or who do I call for urgent technical assistance if my Demarec tool develops a fault on site after purchase?
Demarec runs an in house service department and After Sales portal. For help you can phone +31 485 442 300 option 2 for parts or option 3 for service, or write to parts@demarec.com and service@demarec.com. Local dealers worldwide can also supply parts and support.
I would like to represent Demarec what steps should I follow to become an authorised dealer?
Fill out the short enquiry form on the Become our dealer page. Demarec will review the details and respond directly.
Does Demarec offer training facilities to dealers?
Yes we have our inhouse training center for service and sales.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my carrier excavator or material handler?
Every product page and brochure includes a technical specification table that lists carrier weight windows, tool weight, oil flow and pressure. Match your machine to those ranges or ask Demarec service for confirmation. Example: DRG selector grabs cover carriers from ten to eighty tons with detailed specs-per-model.
