ProLine - 2-cylinder
concrete crushers
Efficient
and powerfull
The ProLine Two-Cyclinder Concrete Crushers DCC are specifically designed to provide an efficient and powerful solution within the demolition equipment market, with the quality you expect from Demarec. This completely new concept includes new interchangeable wear parts. These crushers are ideal for secondary demolition work and help reduce transport costs by crushing on site.
no compromises
on quality
During development, we made no compromises on quality and mainly looked for ways to develop a product with a more favorable end price for the customer. Well-known features such as the speed valve, the upside-down cylinder placement, which fully protects the cylinder rod, and the robust pivot point are also implemented in the DCC series.
Exceptional
price to performance
The Demarec DNA
Trendsetter
Trendsetter in
product developments
Knowledge
Technical and market knowledge in perfect harmony
New generation components
A lead over the competition due to the use of a new generation of components
Superior quality
Superior quality at market prices
Sustainability
Focus on sustainability
Low operating costs
Supplier of equipment with low operating costs
Greater longevity
Faster, higher capacity, less maintenance, low fuel consumption, greater longevity and interchangeable components
KINSHOFER GROUP
Part of the KINSHOFER GROUP
Key features & benefits
Exchangeable wear parts
for DCC-C and DCC-D
Heavy duty cylinder protection
Speed valve for fast cycle times
Redesigned rotor head
(prepared for easy installation of an OilQuick adapter plate)
Robust pivot points
for a long lifetime
Exchangeable cutting blades
Double-roller slewing ring
Filters in rotation circuit

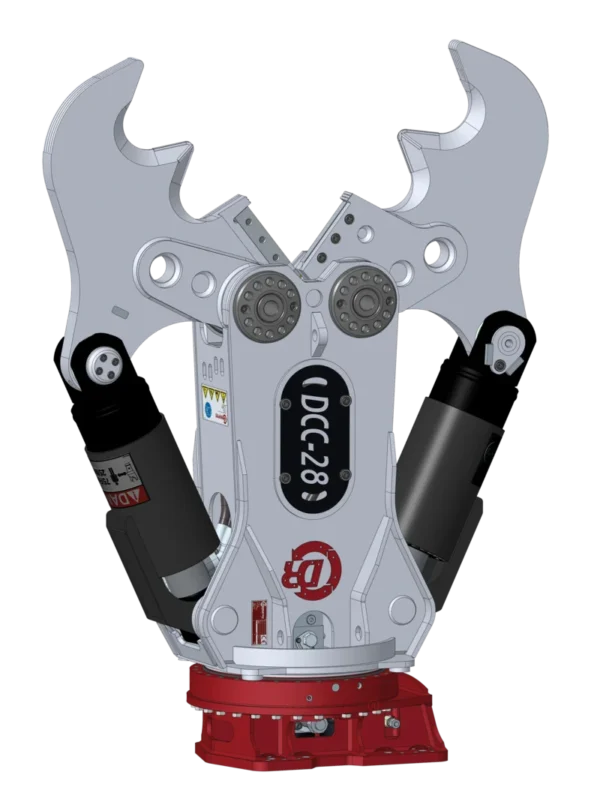

DCC-A
Standard DCC

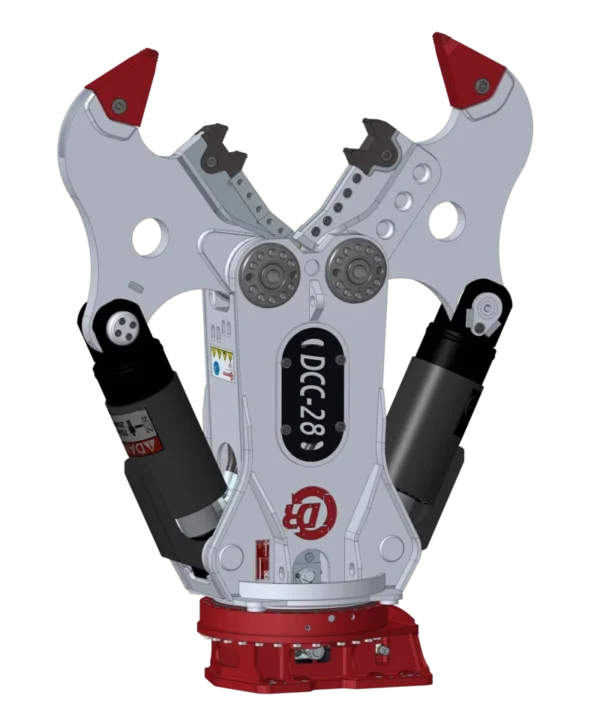

DCC-C
With exchangeable tips, shrouds and long cutting blades
DCC-D
With exchangeable wear parts and standard cutting blades
| Type | Unit | DCC-20-A | DCC-24-A | DCC-28-A | DCC-36-A | DCC-48-A | DCC-60-A | DCC-70-A |
|---|---|---|---|---|---|---|---|---|
| Carrier weight* | ton | 14 – 20 | 18 – 25 | 20 – 35 | 25 – 45 | 35 – 55 | 50 – 70 | 60 – 80 |
| Weigh (approx)** | kg | 1500 | 2000 | 2425 | 3250 | 4200 | 5300 | 6300 |
| Closing force (approx.) | ton | – | 85 | 100 | 110 | 125 | 145 | 160 |
| Jaw opening | mm | – | 1000 | 1150 | 1360 | 1500 | 1600 | 1750 |
| Jaw Depth | mm | – | 865 | 935 | 1035 | 1135 | 1235 | 1350 |
| Height | mm | – | 2195 | 2390 | 2545 | 2845 | 2995 | 3225 |
| Length of cutting blades | mm | – | 200 | 250 | 300 | 300 | 300 | 400 |
| Opening/Closing Pmax | bar | – | 350 | 350 | 350 | 350 | 350 | 350 |
| FLow | l/min | – | 150 – 250 | 200 – 300 | 250 – 350 | 300 – 500 | 400 – 600 | 500 – 700 |
| Cycle time Opening/Closing | sec | – | 2,3 / 3,0 | 2,5 / 3,4 | 3,3 / 3,6 | 3,2 / 3,4 | 2,8 / 3,9 | 2,8 / 3,8 |
| Type | Unit | DCC-20-C | DCC-24-C | DCC-28-C | DCC-36-C | DCC-48-C | DCC-60-C | DCC-70-C |
| Carrier weight* | ton | 14 – 20 | 18 – 25 | 20 – 35 | 25 – 45 | 35 – 55 | 50 – 70 | 60 – 80 |
| Weight** | kg | 1500 | 2100 | 2425 | 3250 | 4200 | 5300 | 6300 |
| Closing force (approx.) | ton | – | 85 | 100 | 110 | 125 | 145 | 160 |
| Jaw opening | mm | – | 1000 | 1150 | 1360 | 1500 | 1600 | 1750 |
| Jaw depth | mm | – | 825 | 900 | 1000 | 1100 | 1200 | 1250 |
| Height | mm | – | 2195 | 2390 | 2545 | 2845 | 2995 | 3225 |
| Length of cutting blades | mm | – | 520 | 520 | 570 | 650 | 680 | 700 |
| Opening/Closing Pmax | bar | – | 350 | 350 | 350 | 350 | 350 | 350 |
| FLow | l/min | – | 150 – 250 | 200 – 300 | 250 – 350 | 300 – 500 | 400 – 600 | 500 – 700 |
| Cycle time Opening/Closing | sec | – | 2,3 / 3,0 | 2,5 / 3,4 | 3,3 / 3,6 | 3,2 / 3,4 | 2,8 / 3,9 | 2,8 / 3,8 |
| Type | Unit | DCC-20-D | DCC-24-D | DCC-28-D | DCC-36-D | DCC-48-D | DCC-60-D | DCC-70-D |
| Carrier weight* | ton | 14 – 20 | 18 – 25 | 20 – 35 | 25 – 45 | 35 – 55 | 50 – 70 | 60 – 80 |
| Weigh** | kg | 1500 | 2000 | 2425 | 3250 | 4200 | 5300 | 6300 |
| Closing force (approx.) | ton | – | 85 | 100 | 110 | 125 | 145 | 160 |
| Jaw opening | mm | – | 1000 | 1125 | 1355 | 1490 | 1565 | 1710 |
| Jaw depth | mm | – | 865 | 900 | 1000 | 1100 | 1200 | 1300 |
| Height | mm | – | 2195 | 2390 | 2545 | 2845 | 2995 | 3225 |
| Length of cutting blades | mm | – | 200 | 250 | 300 | 300 | 300 | 400 |
| Opening/Closing Pmax | bar | – | 350 | 350 | 350 | 350 | 350 | 350 |
| FLow | l/min | – | 150 – 250 | 200 – 300 | 250 – 350 | 300 – 500 | 400 – 600 | 500 – 700 |
| Cycle time Opening/Closing | sec | – | 2,3 / 3,0 | 2,5 / 3,4 | 3,3 / 3,6 | 3,2 / 3,4 | 2,8 / 3,9 | 2,8 / 3,8 |
Download our free
ProLine DCC brochure
Want to know more about our ProLine 2-cylinder concrete crushers?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition recycling scrap handling and construction attachments are included in Demarec’s product range?
Demarec has separate product lines with the PremiumLine and ProLine for Demolition and Recycling, Scrap and Recycling, and Construction. Key tools include demolition and sorting grabs, pulverizers, multi quick processors, two cylinder concrete crushers, hydraulic hammers, multi shears, drum cutters, scrap shears, rail cutters, polyp grabs, rotatable pulverizers, tilt rotators and more.
How does the patented DemaPower System boost the power and cycle speed of Demarec tools?
The four chamber DemaPower cylinder delivers about twenty five percent more closing force and cycles faster because two chambers work on the in stroke and two on the out stroke. A double acting speed valve keeps oil moving both ways, so the jaw opens and closes in roughly five seconds while staying within normal excavator pressure.
Where can I obtain spare parts maintenance, repairs for my Demarec attachment or who do I call for urgent technical assistance if my Demarec tool develops a fault on site after purchase?
Demarec runs an in house service department and After Sales portal. For help you can phone +31 485 442 300 option 2 for parts or option 3 for service, or write to parts@demarec.com and service@demarec.com. Local dealers worldwide can also supply parts and support.
I would like to represent Demarec what steps should I follow to become an authorised dealer?
Fill out the short enquiry form on the Become our dealer page. Demarec will review the details and respond directly.
Does Demarec offer training facilities to dealers?
Yes we have our inhouse training center for service and sales.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my carrier excavator or material handler?
Every product page and brochure includes a technical specification table that lists carrier weight windows, tool weight, oil flow and pressure. Match your machine to those ranges or ask Demarec service for confirmation. Example: DRG selector grabs cover carriers from ten to eighty tons with detailed specs-per-model.
