Cylinderless Tiltrotator
Multifunctional
all-rounder
Experience and innovation have resulted in one of the most advanced excavator tools: the latest generation of NOX cylinderless tiltrotators. The 360
various operating systems
and an optional gripper

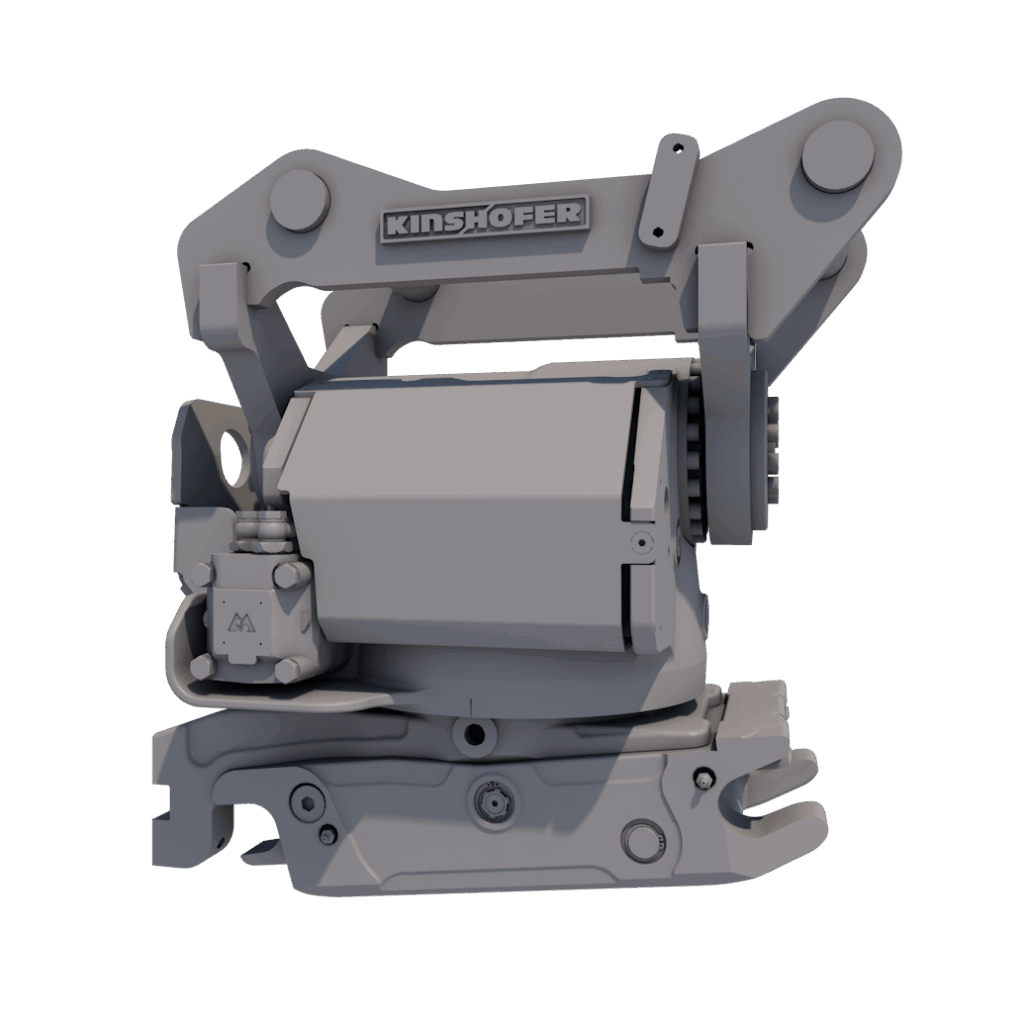

Due to the lack of cylinders, the construction height is very low and the width of the tiltrotator modest. Therefore, the NOX is ideal when working in confined spaces. An elliptical piston generates a high and constant tilting moment. The NOX is available with various operating systems and an optional gripper. The NOX tiltrotator is available for mounting on excavators from 3 to 25 tons machine weight, 5 types are available for this.
The 360 ° continuous rotation
and 2 x 50 ° tilt angle make the excavator
a multifunctional all-rounder
Key features & benefits
DESIGN
The compact design with its fully integrated tilt and rotation unit offers the highest protection against damage. There are no protruding cylinders or piston rods that can be damaged, this makes the NOX reliable. Due to the compact construction, the breakout force of the machine optimally.
COMPACT CYLINDERLESS DESIGN

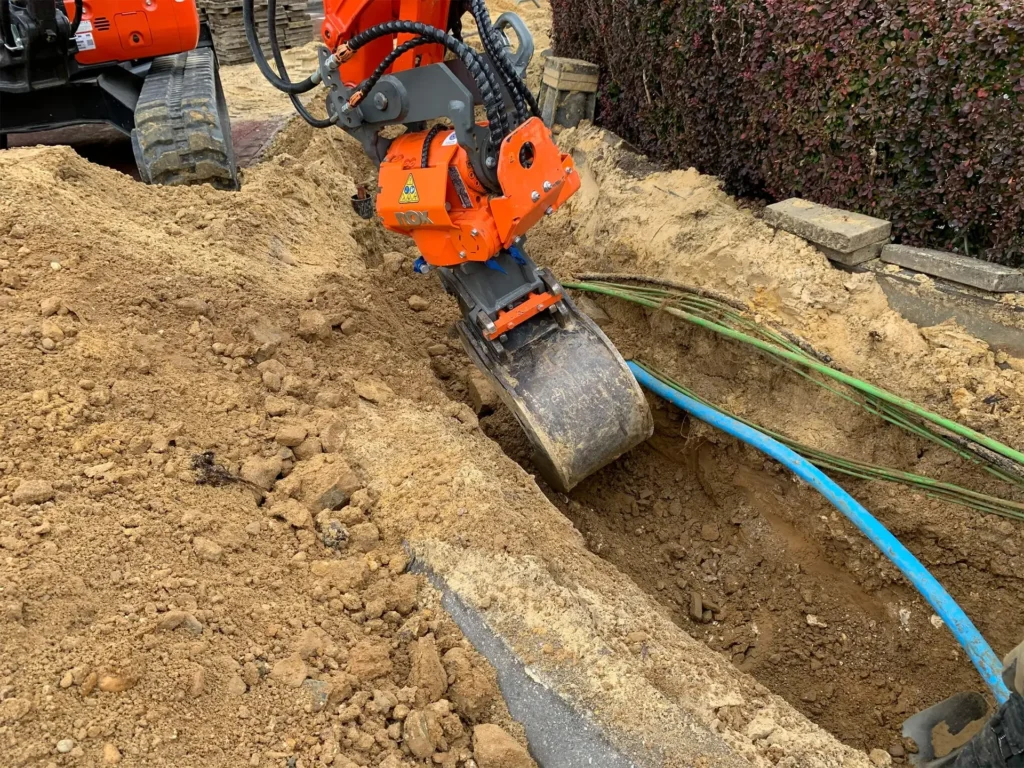

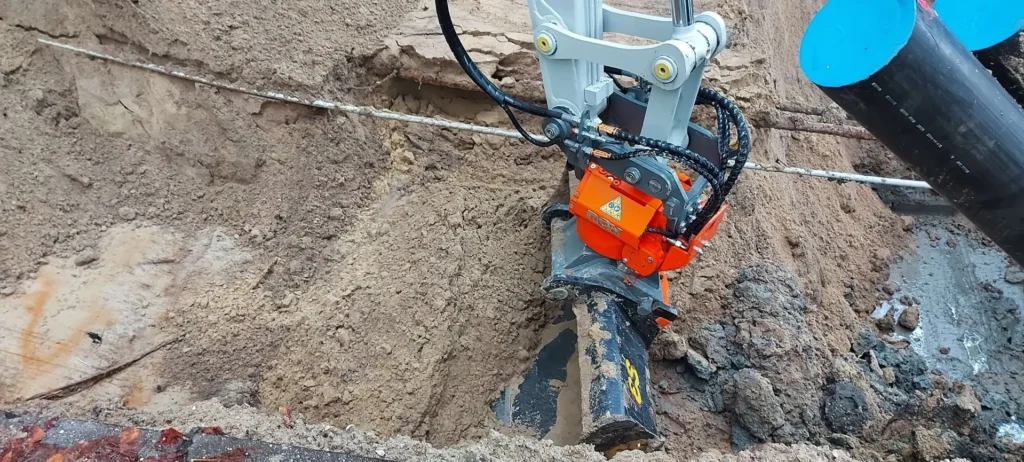

The cylinder-less, extremely low and narrowly built drive unit allows working with very narrow bucket widths. This makes for example digging in deep and narrow trenches,as with cable and pipework, perfectly possible and extremely simple.
SAFETY: SAFE WORK ENVIRONMENT
Due to the larger working radius, an excavator needs to be carried to be moved much less with a NOX.
| NOX Type | Weight* | Machineweight** | Width | Length | Height | Tilt angle | Tipping point | Torque |
|---|---|---|---|---|---|---|---|---|
| TR-045 | 150 kg | 2.5 – 4.5 t | 190 mm | 435 mm | 380 mm | 2 x 45° | 6,5 kNm | 3800 Nm |
| TR-07 | 200 kg | 4 – 7 t | 205 mm | 460 mm | 420 mm | 2 x 50° | 10 kNm | 4600 Nm |
| TR-11 | 320 kg | 6 – 11 t | 215 mm | 580 mm | 475 mm | 2 x 50° | 16 kNm | 6400 Nm |
| TR-14 | 485 kg | 10 – 14 t | 240 mm | 610 mm | 565 mm | 2 x 50° | 26 kNm | 7800 Nm |
| TR-19 | 580 kg | 14 – 19 t | 230 mm | 645 mm | 580 mm | 2 x 50° | 34 kNm | 8800 Nm |
| TR-25 | 860 kg | 19 – 25 t | 260 mm | 845 mm | 650 mm | 2 x 50° | 44 kNm | 9300 Nm |
| * Weight excl bracket | ||||||||
| ** Machine weight is indicative |
Download our free
NOX brochure
Want to know more about our Tiltrotators?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition recycling scrap handling and construction attachments are included in Demarec’s product range?
Demarec has separate product lines with the PremiumLine and ProLine for Demolition and Recycling,
Scrap and Recycling, and Construction. Key tools include demolition and sorting grabs,
pulverizers, multi quick processors, two cylinder concrete crushers, hydraulic hammers, multi shears, drum cutters, scrap shears, rail cutters, polyp grabs, rotatable pulverizers, tilt rotators and more.
How does the patented DemaPower System boost the power and cycle speed of Demarec tools?
The four chamber DemaPower cylinder delivers about twenty five percent more closing force and cycles faster because two chambers work on the in stroke and two on the out stroke. A double acting speed valve keeps oil moving both ways, so the jaw opens and closes in roughly five seconds while staying within normal excavator pressure.
Where can I obtain spare parts maintenance, repairs for my Demarec attachment or who do I call for urgent technical assistance if my Demarec tool develops a fault on site after purchase?
Demarec runs an in house service department and After Sales portal. For help you can phone +31 485 442 300 option 2 for parts or option 3 for service, or write to parts@demarec.com and service@demarec.com. Local dealers worldwide can also supply parts and support.
I would like to represent Demarec what steps should I follow to become an authorised dealer?
Fill out the short enquiry form on the Become our dealer page. Demarec will review the details and respond directly.
Does Demarec offer training facilities to dealers?
Yes we have our inhouse training center for service and sales.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my carrier excavator or material handler?
Every product page and brochure includes a technical specification table that lists carrier weight windows, tool weight, oil flow and pressure. Match your machine to those ranges or ask Demarec service for confirmation. Example: DRG selector grabs cover carriers from ten to eighty tons with detailed specs-per-model.
