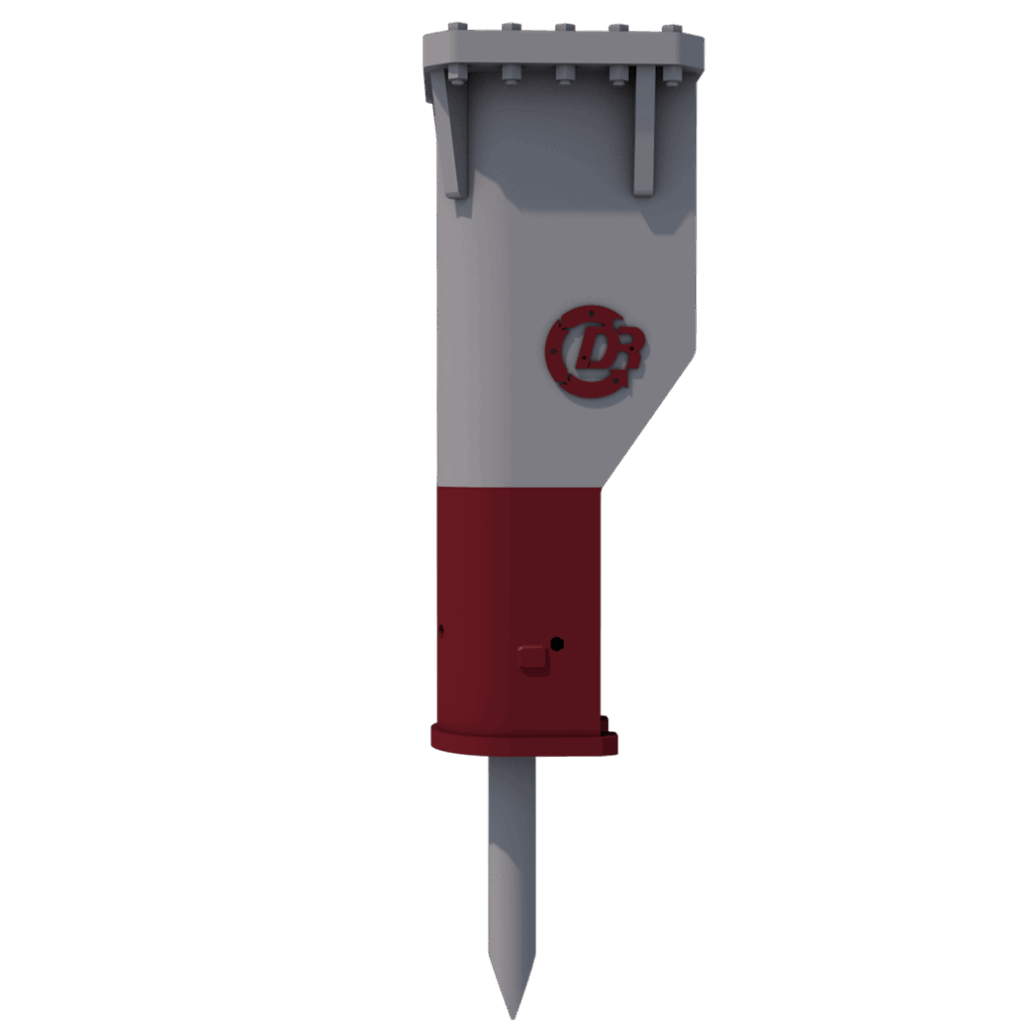

Hydraulic hammer
very simple design
less parts and easy to service

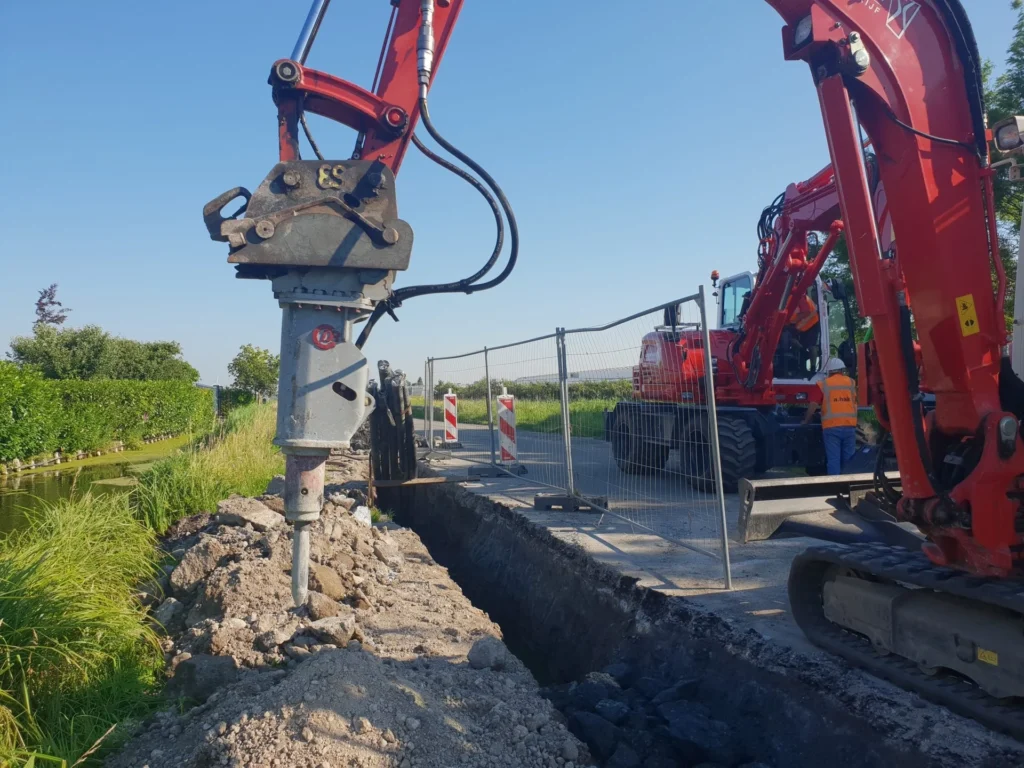

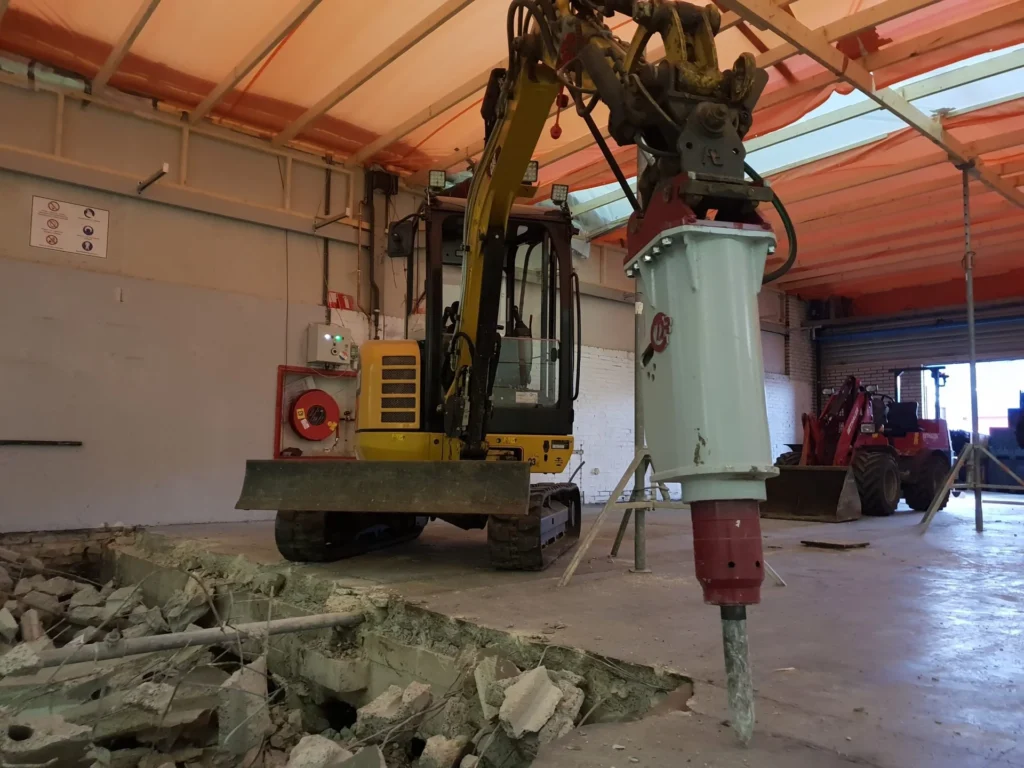

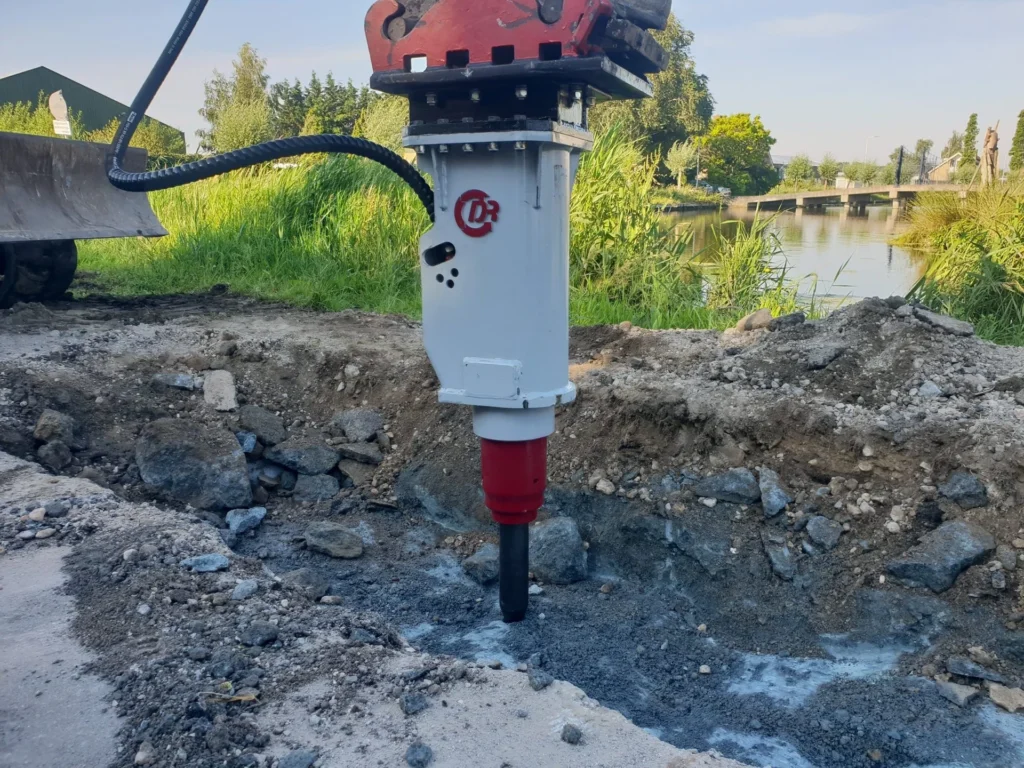

The Demarec hammers of the DSB series are suitable for carriers, mini excavators, mini-blades, backhoe loaders, demolition robots. etc.. The breakers of the DSB series, thanks to their power and efficiency and to the right relationship between weight and power are suitable for primary and secondary demolition work, in urban areas and f.e. galleries. The DSB series are “MonoBloc-Hammers”, a very simple design, less parts and easy to service.
A combination of
punchingpower and innovation
Key features & benefits
More power and less vibration and maintenance
The DSB breakers work with inertial nitrogen energy recovery, obtaining more power (more than 30%) and less vibration thanks to the nitrogen chamber which reduces maintenance costs, since it has no diaphragms inside it.
Long lasting of the nitrogen charge
In the past, energy recovery breakers required frequent nitrogen refills; with the new sealing system and the new compound developed by Freudenberg they are able to guarantee a gas tightness equal to 300% more than in the past.
Only two moving parts
tolerates high back pressure
For all types of installations (pressurization). The DSB series tolerates high back pressure values and has a wide calibration range of the required oil flow, in order to facilitate installation.
Silenced body
The particular construction, with a closed box casing as well as the insertion of sound-absorbing material, allowed to reach very low noise levels for a breaker.
Double retainer pin
The tool locking system with double retainer pin allows an adequate and uniform wear of the same and ensures longer maintenance intervals for the whole locking system.
Monobloc body without tie rods
The entire DSB series benefit from the particular monobloc construction; this feature gives the structure a very high resistance to leverage, during work. The breaker is built in one only piece and it is without tie rods, thus obtaining more production and less maintenance for our customers.
Single interchangeable cylinder liner
The piston moves in a single interchangeable cylinder liner, easy to replace in case of necessity, keeping intact the main body.
Protected tubes
The tubes are completely protected through the casing and they’re suitable for every type of excavation, especially in narrow spaces.
Constant energy of impact
Piston constructed with a special geometry such as to keep a constant energy of impact, as well as reducing breakages in conditions of criticality.
Visibility and versatility
The breakers of the DSB series, with their tapered shape, provide the operator with an excellent view during the work and allow to operate close to the walls, both in narrow section and with open front.
constant energy of impact
Piston constructed with a special geometry such as to keep a constant energy of impact, as well as reducing breakages in conditions of criticality.
| Type | Carrier Weight* | Weight** | Height*** | Chisel diameter | Flow | Oil pressure | Max back pressure |
|---|---|---|---|---|---|---|---|
| DSB-0 | 0,5 – 1,4 ton | 60 kg | 783 mm | 40 mm | 15 – 20 l/min | 110 bar | 30 bar |
| DSB-1 | 0,5 – 2,5 ton | 70 kg | 810 mm | 40 mm | 13 – 20 l/min | 140 bar | 30 bar |
| DSB-2 | 1,2 – 3,5 ton | 100 kg | 920 mm | 45 mm | 15 – 30 l/min | 150 bar | 30 bar |
| DSB-3 | 1,5 – 4,5 ton | 145 kg | 920 mm | 48 mm | 18 – 40 l/min | 150 bar | 30 bar |
| DSB-4 | 2,5-6,5 ton | 190 kg | 1145 mm | 55 mm | 25 – 55 l/min | 170 bar | 30 bar |
| DBS-6 | 3,0-8,0 ton | 250 kg | 1170 mm | 65 mm | 30 – 60 l/min | 180 bar | 30 bar |
| DSB-8 | 4,5-9,0 ton | 320 kg | 1200 mm | 75 mm | 50 – 70 l/min | 200 bar | 30 bar |
| DSQ-12 | 8-11 ton | 500 kg | 1580 mm | 85 mm | 65 – 90 l/min | 170 bar | 30 bar |
