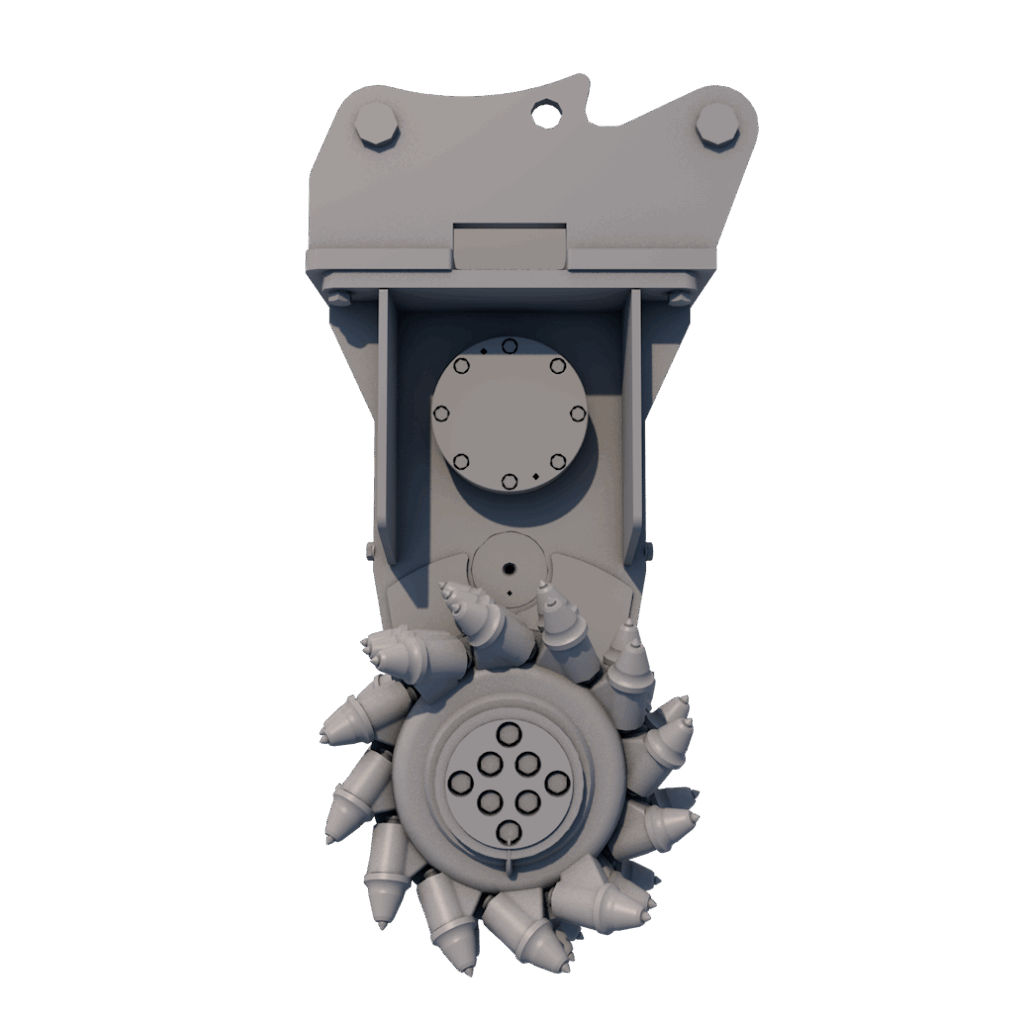

Drum Cutter
Driven by high torque motors
and equipped with a gear reduction
to increase the cutting force
Key features & benefits
Low noise level and less vibration
reduce work fatigue
Robust spur gear
Maximum performance due to robust spur gear
Low maintenance
Extremely robust with low maintenance due to massive drive shaft bearing and heavy duty sealing system
Hydraulic motor can be chosen
in accordance to excavator`s hydraulic output power
Fast and easy exchange of wear parts
reduces downtime
Large drum and pick assortment
Waterproof
to 25m depth
| Type | Carrierweight* | Weight** | Diameter cutter | Pmax |
|---|---|---|---|---|
| KDC-04 | 2-4 ton | 250 kg | 350 mm | 375 bar |
| KDC-06 | 4-6 ton | 250 kg | 350 mm | 375 bar |
| KDC-08 | 6-8 ton | 250 kg | 350 mm | 375 bar |
| KDC-15 | 8-15 ton | 420 kg | 405 mm | 375 bar |
| KDC-20 | 15-20 ton | 850 kg | 550 mm | 350 bar |
| KDC-30 | 20-30 ton | 1400 kg | 615 mm | 350 bar |
| KDC-35 | 30-35 ton | 1460 kg | 615 mm | 350 bar |
| KDC-45 | 35-45 ton | 2550 kg | 760 mm | 350 bar |
| KDC-60 | 45-60 ton | 2800 kg | 760 mm | 350 bar |
| *Depending on lifting capacity of carrier | ||||
| **Weight incl. standard bracket | ||||
| Subject to change without notice |
Download our free
KDC brochure
Want to know more about our Drum Cutters?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition recycling scrap handling and construction attachments are included in Demarec’s product range?
Demarec has separate product lines with the PremiumLine and ProLine for Demolition and Recycling, Scrap and Recycling, and Construction. Key tools include demolition and sorting grabs, pulverizers, multi quick processors, two cylinder concrete crushers, hydraulic hammers, multi shears, drum cutters, scrap shears, rail cutters, polyp grabs, rotatable pulverizers, tilt rotators and more.
How does the patented DemaPower System boost the power and cycle speed of Demarec tools?
The four chamber DemaPower cylinder delivers about twenty five percent more closing force and cycles faster because two chambers work on the in stroke and two on the out stroke. A double acting speed valve keeps oil moving both ways, so the jaw opens and closes in roughly five seconds while staying within normal excavator pressure.
Where can I obtain spare parts maintenance, repairs for my Demarec attachment or who do I call for urgent technical assistance if my Demarec tool develops a fault on site after purchase?
Demarec runs an in house service department and After Sales portal. For help you can phone +31 485 442 300 option 2 for parts or option 3 for service, or write to parts@demarec.com and service@demarec.com. Local dealers worldwide can also supply parts and support.
I would like to represent Demarec what steps should I follow to become an authorised dealer?
Fill out the short enquiry form on the Become our dealer page. Demarec will review the details and respond directly.
Does Demarec offer training facilities to dealers?
Yes we have our inhouse training center for service and sales.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my carrier excavator or material handler?
Every product page and brochure includes a technical specification table that lists carrier weight windows, tool weight, oil flow and pressure. Match your machine to those ranges or ask Demarec service for confirmation. Example: DRG selector grabs cover carriers from ten to eighty tons with detailed specs-per-model.
